Dimensions and Weights
| 5th wheel height | 1.250 mm |
| gross vehicle weight | 39.000 kg |
| max load on the 5th wheel | 12.000 kg |
| max length | 11.500 mm |
| max width | 2.550 mm |
| max height | 3.800 mm |
| wheelbase | 1.310 mm |
Chassis
- is manufactured using FEA calculation
- it is made of high hardness aluminum alloy
- welding seams are made using robotic technology
- the coupling nail is made of forged steel 42CrMo4, in accordance with the 2″SAE/DIN” norms; it is removable with screws.
- OMS brand
Tank
- it can be made of Steel, Aluminum or INOX, according to the customer’s request
- the test pressure is 3 bar
- the operating pressure is 2 bar
- the working temperature is between -20 and +80 degrees Celsius
Axles and Suspension
- 3 axles x 9 tons capacity, SAF brand, with disc brakes
- the 1st axle is lifting, using the control from the cab
- air suspension
Brake System
- HALDEX brand, EBS 2S/2M, according to the European regulation
Tyres and Rims
- 6 units with size 385/65 R 22.5, brand Bridgestone or Pirelli, Fulda, Goodyear
- 6 units aluminum rims
Landing Gear
- 2 x 25 tons capacity
Chassis Protection / Coating
- before painting, all surfaces and accessories are machined smooth and cleaned under a high-pressure water jet with a mixture of chemicals
- coating with Epoxy paint, for resistance to abrasion and the influence of environmental factors
- coating with Acrylic paint
- a superior coating that resists the action of chemical substances is obtained
- according to preference, the final color can be chosen from the RAL color code
Chassis Equipment, Accessory

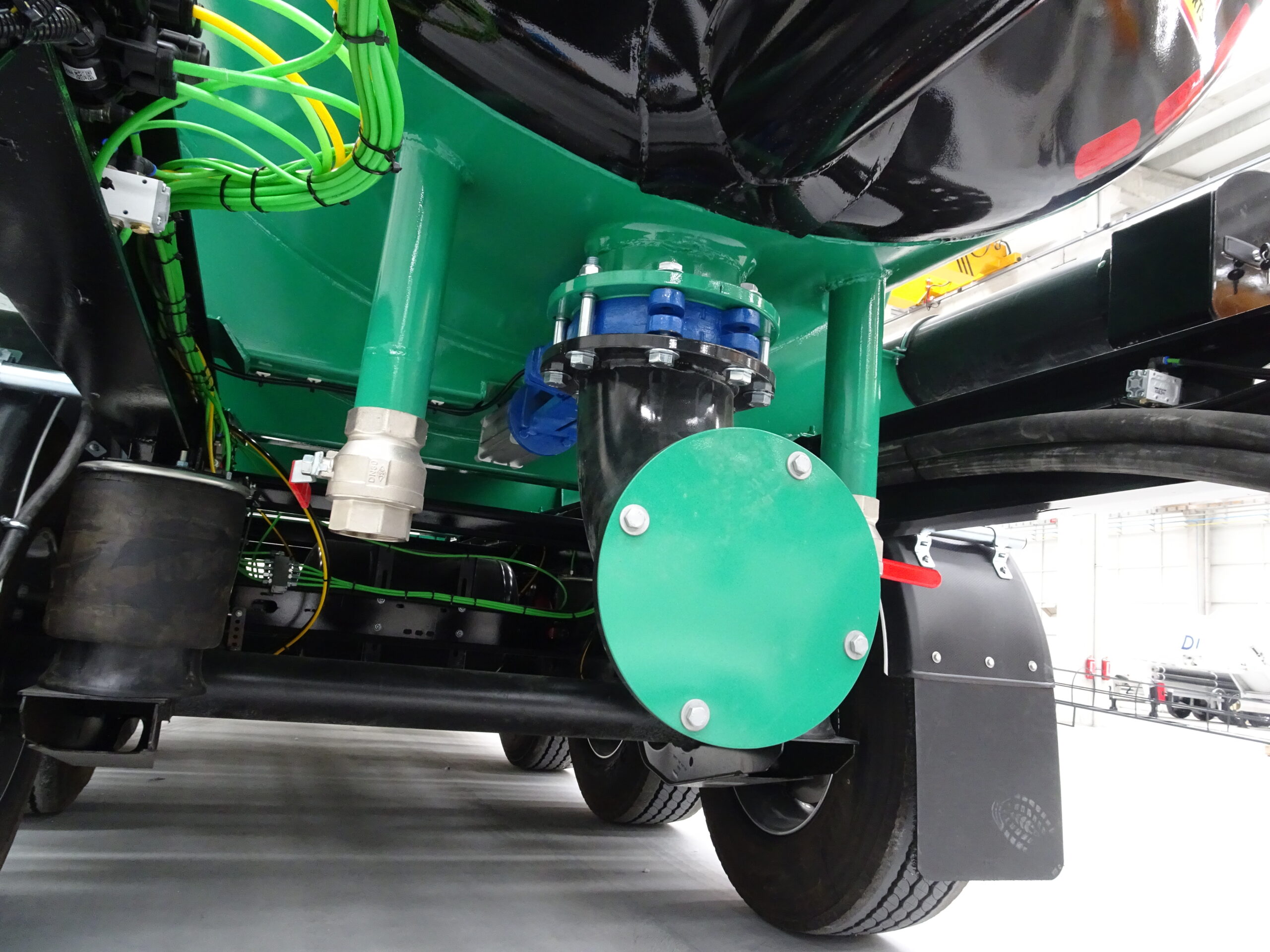

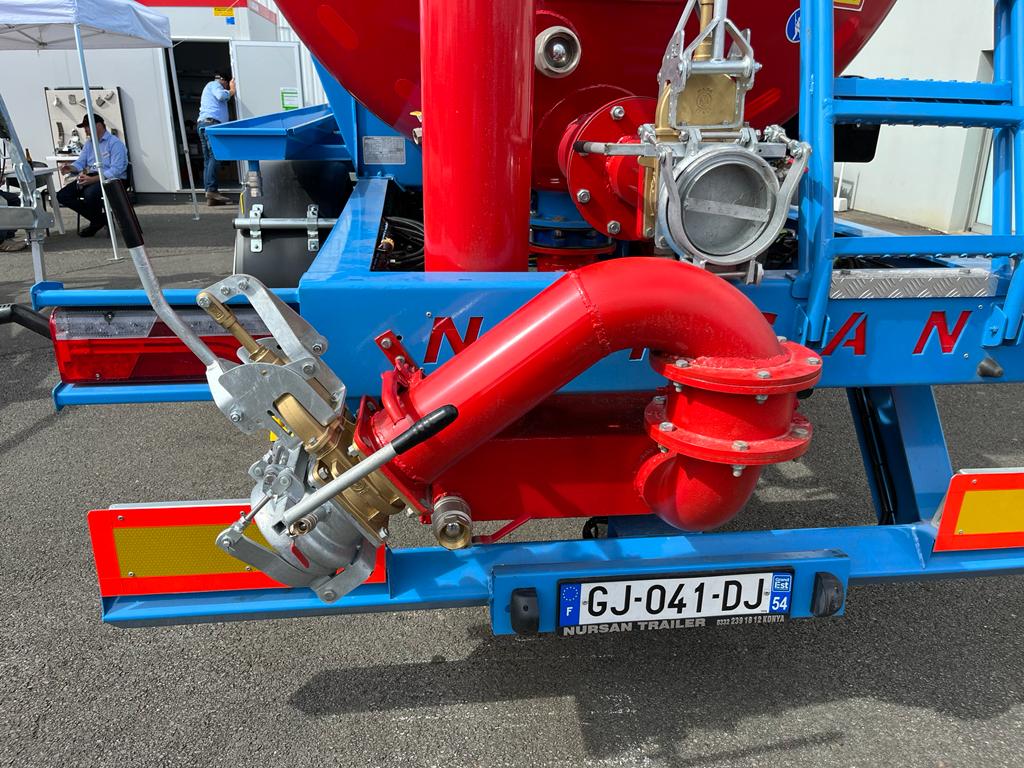

- 4″ discharge system – 1 rear unit, 4″ wringer type
- 1 piece of discharge hose with 4″ twist coupling
- 2 plastic storage boxes
- 1 valve unit set at 2.0 bar for emergency release of air
- 1 plastic water tank unit
- 2 pieces of plastic wedges for locking wheels
- 1 piece fire extinguisher box
- 1 piece of manometer for the pressure inside the silo
- 1 piece manometer for the pressure in the suspension system, controls the valves
- 1 stainless steel air duct unit on the left side for the air blow channel
Other
- the electrical system has sockets 2×7 pins + 1×15 pins – 24 V according to SAE standard;
- Aspock brand
- color: any color requested can be made

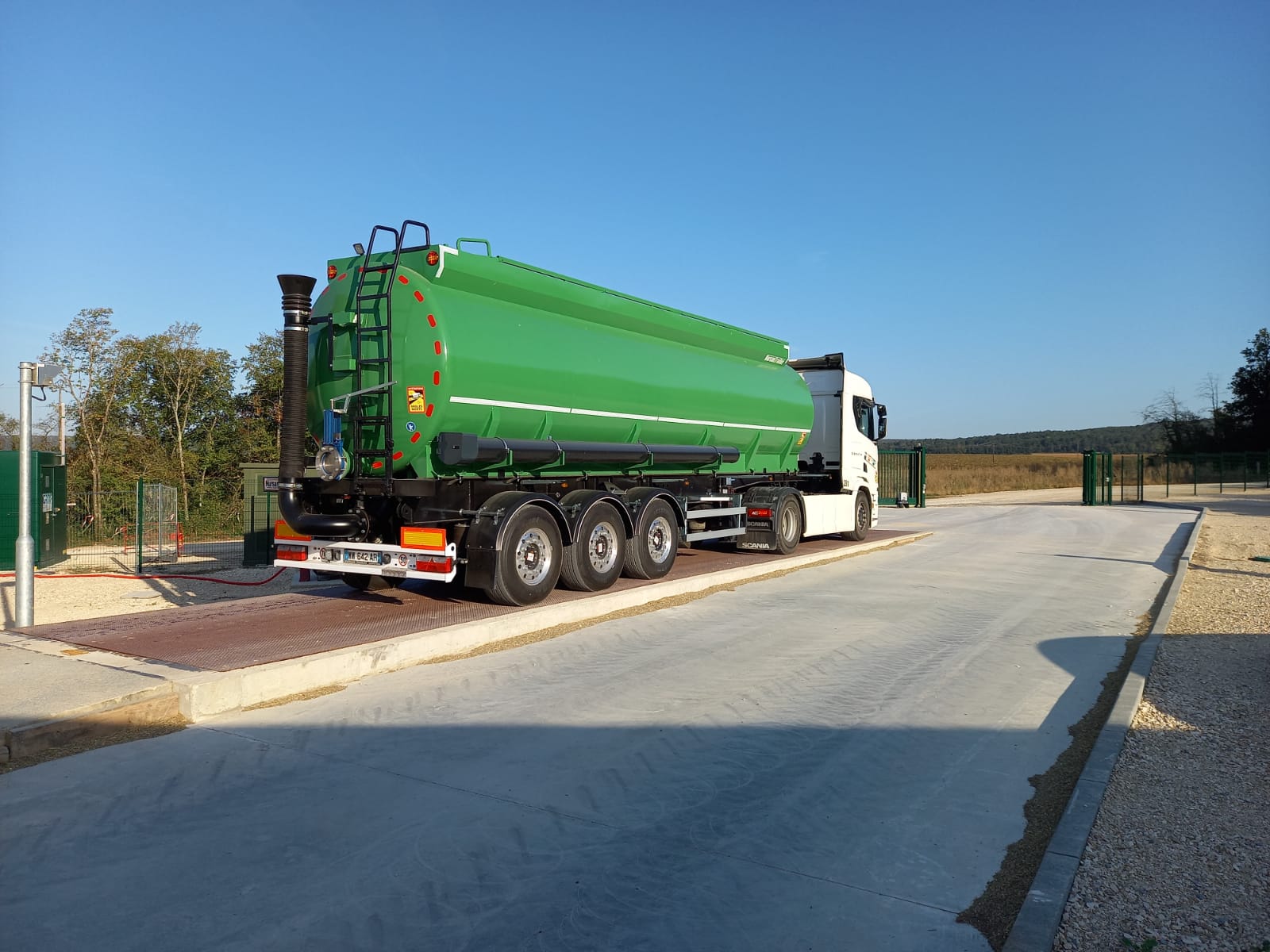

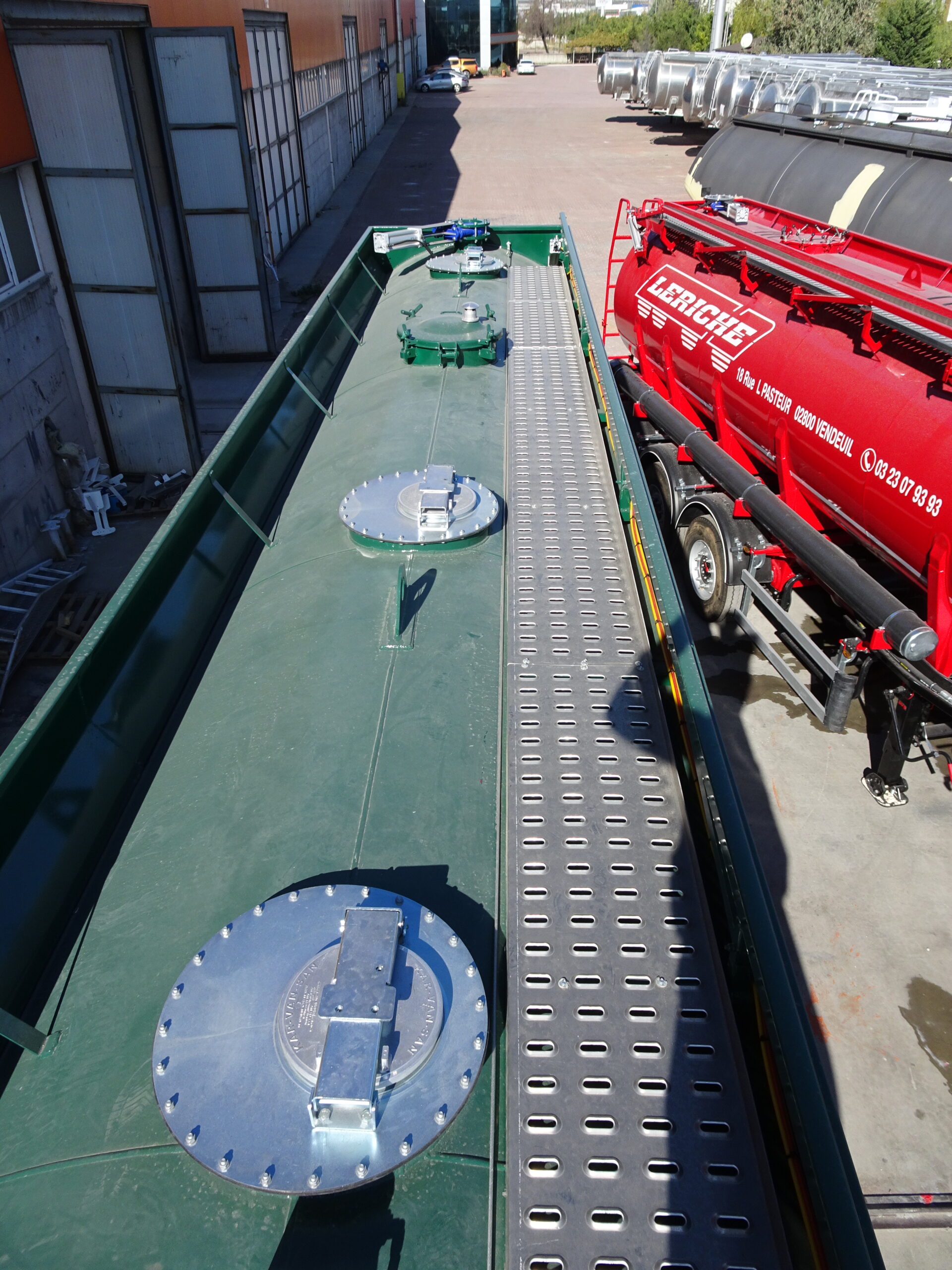

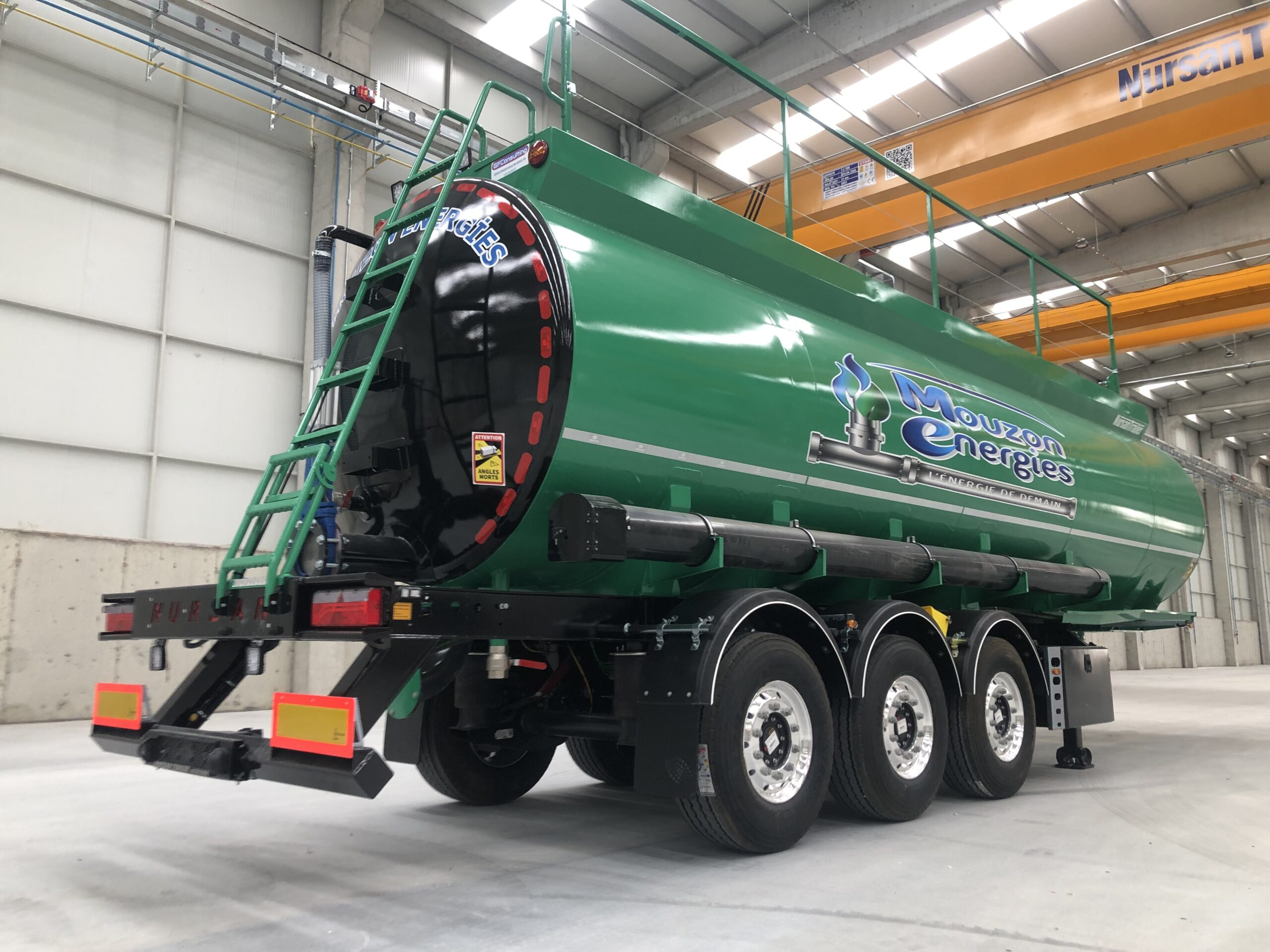

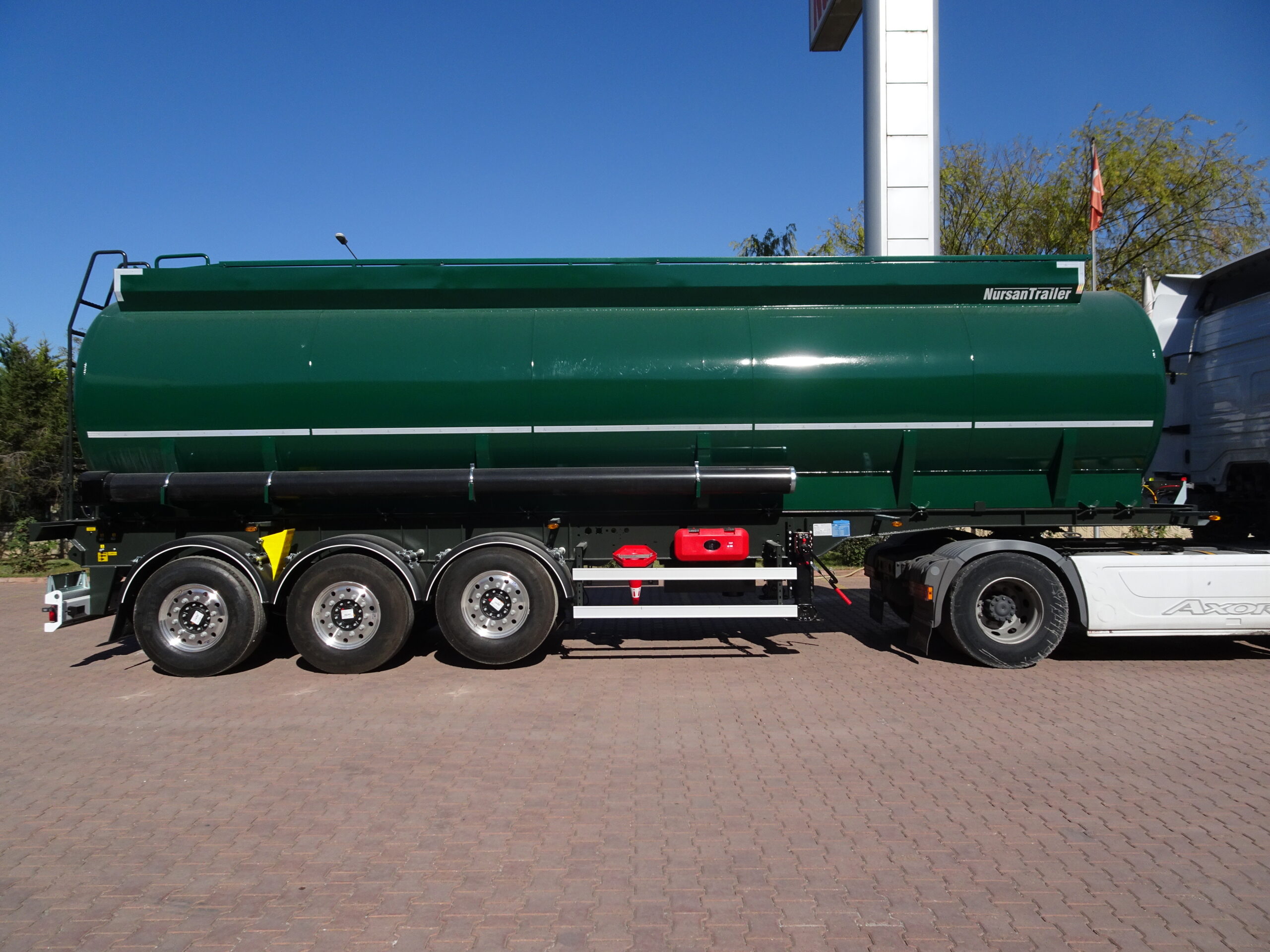

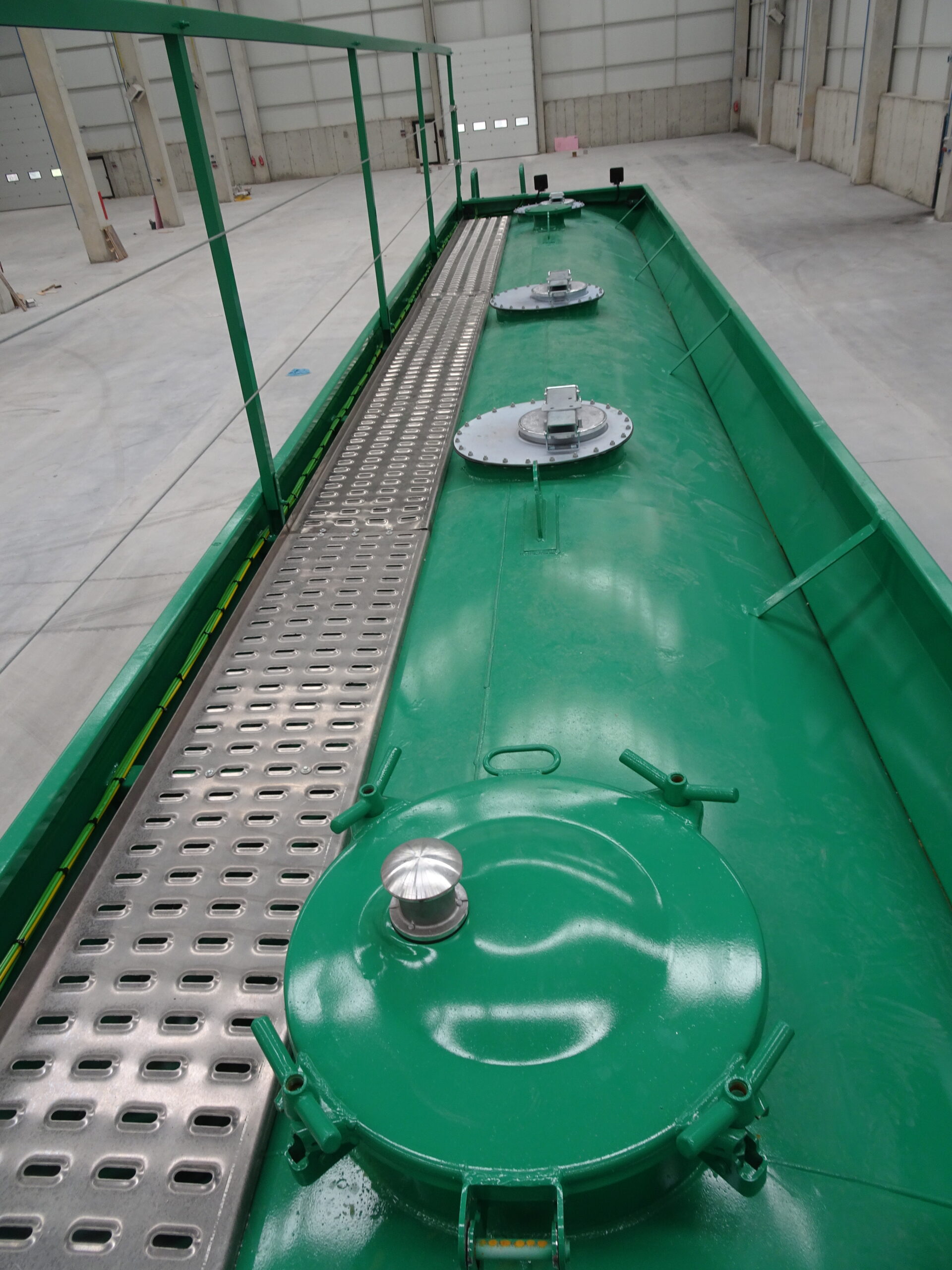

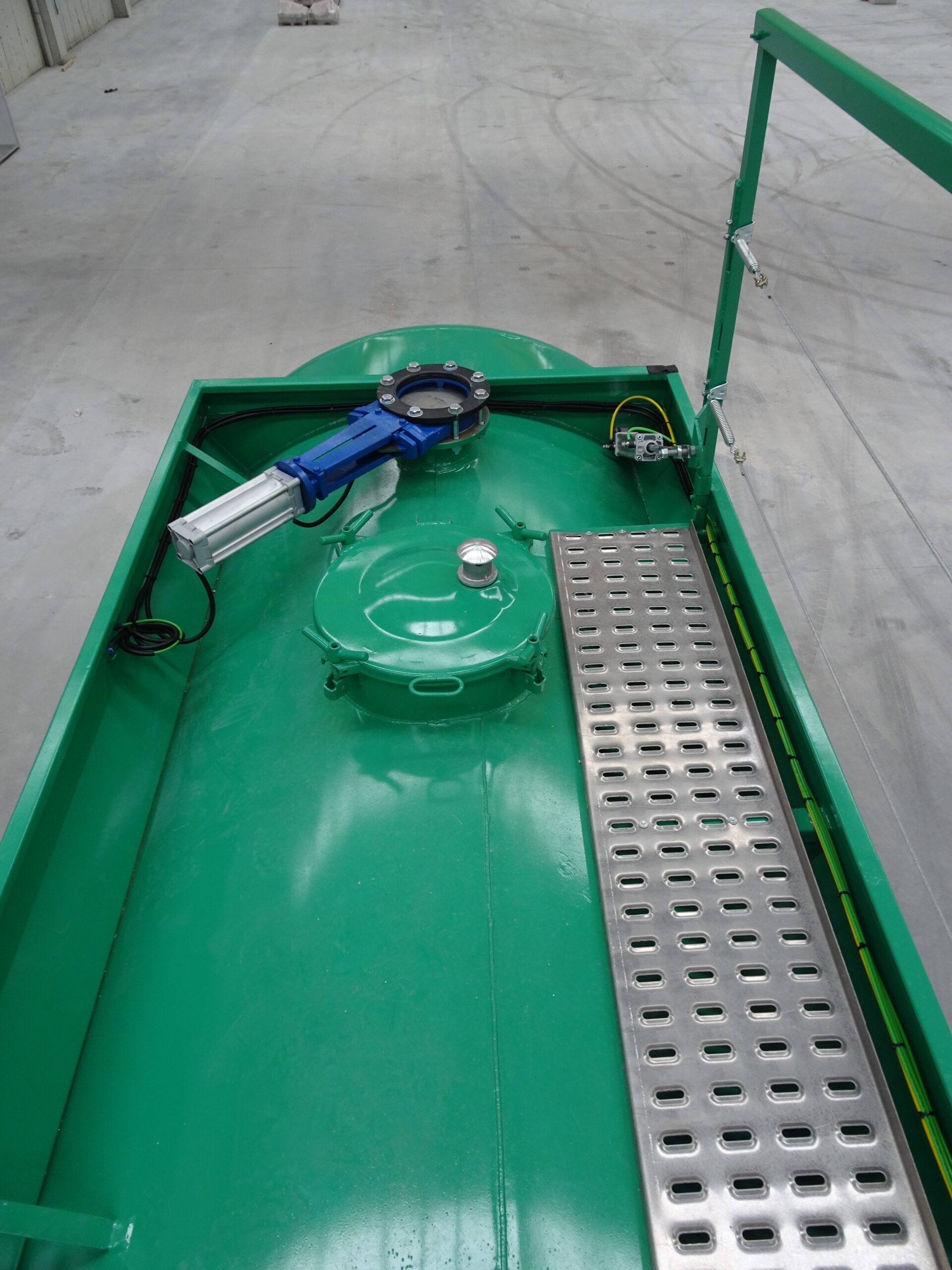

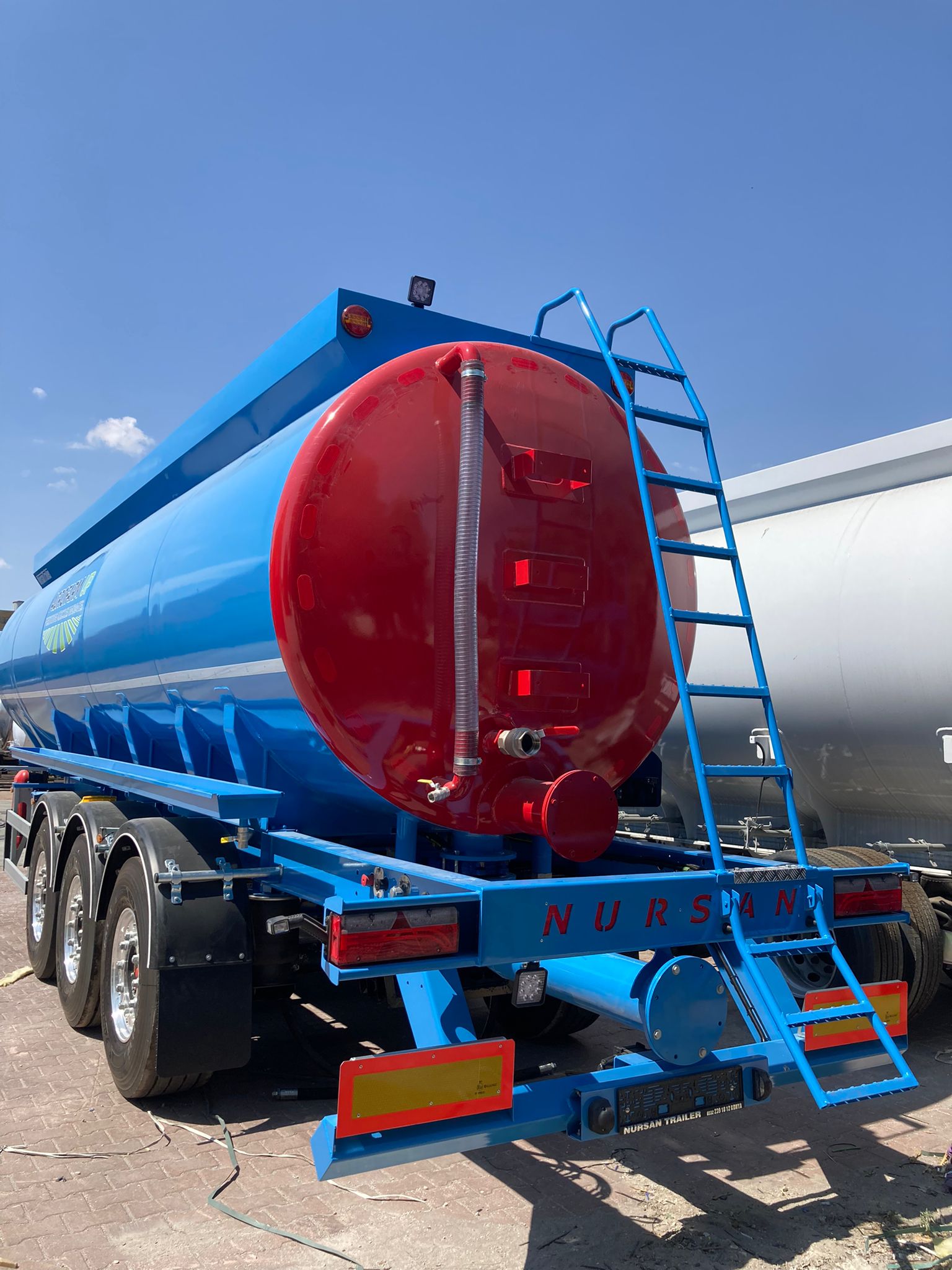

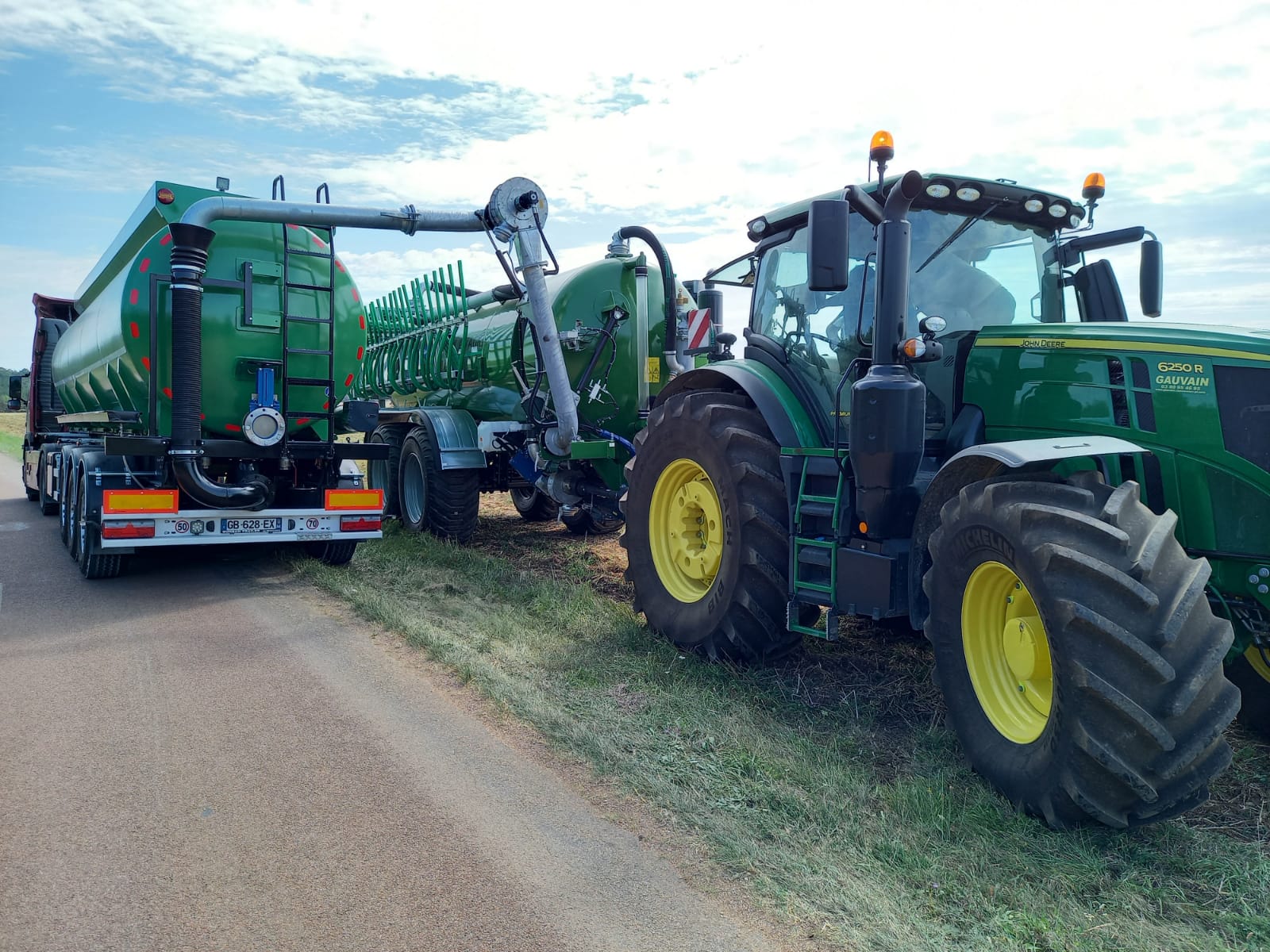

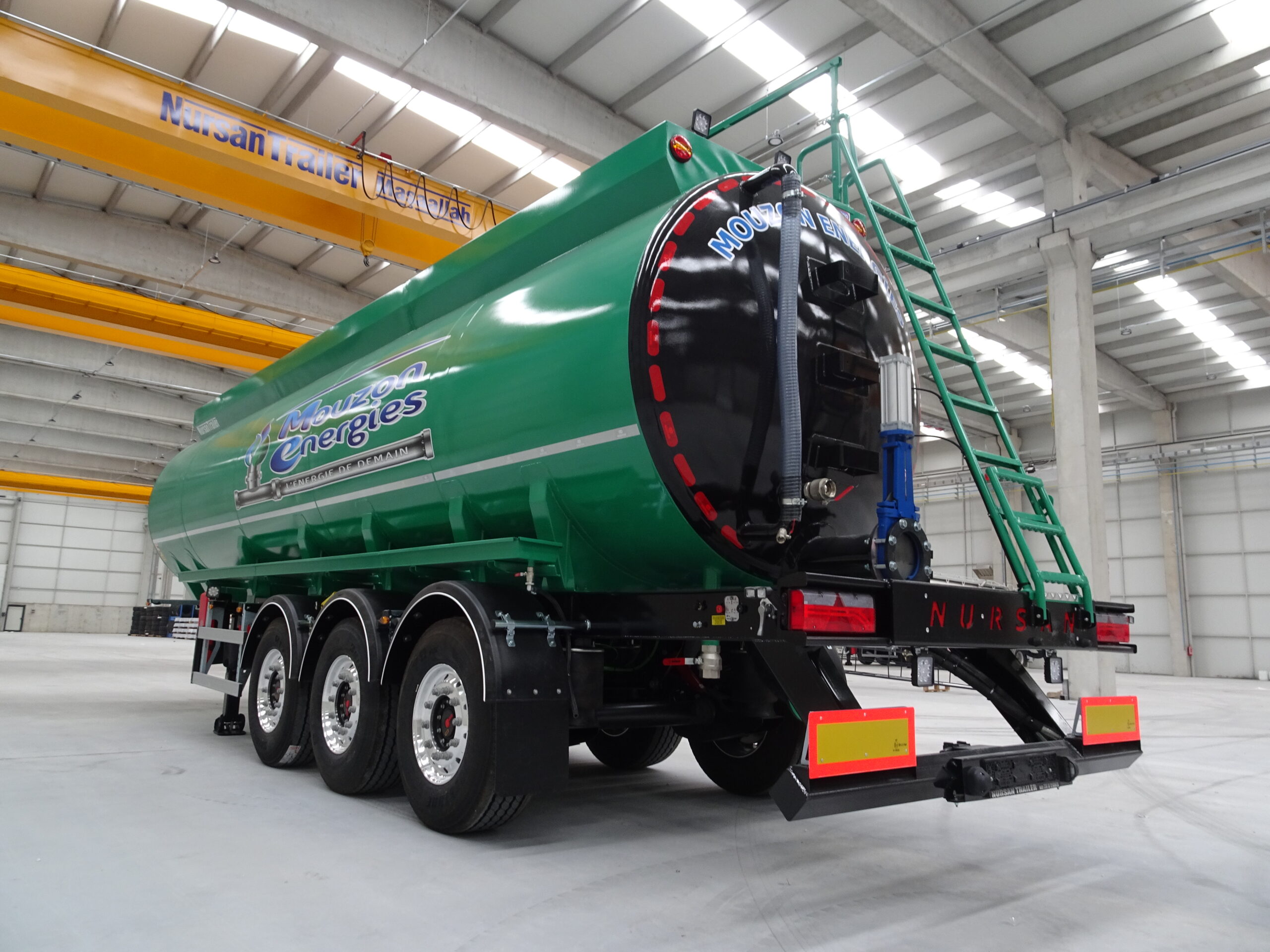

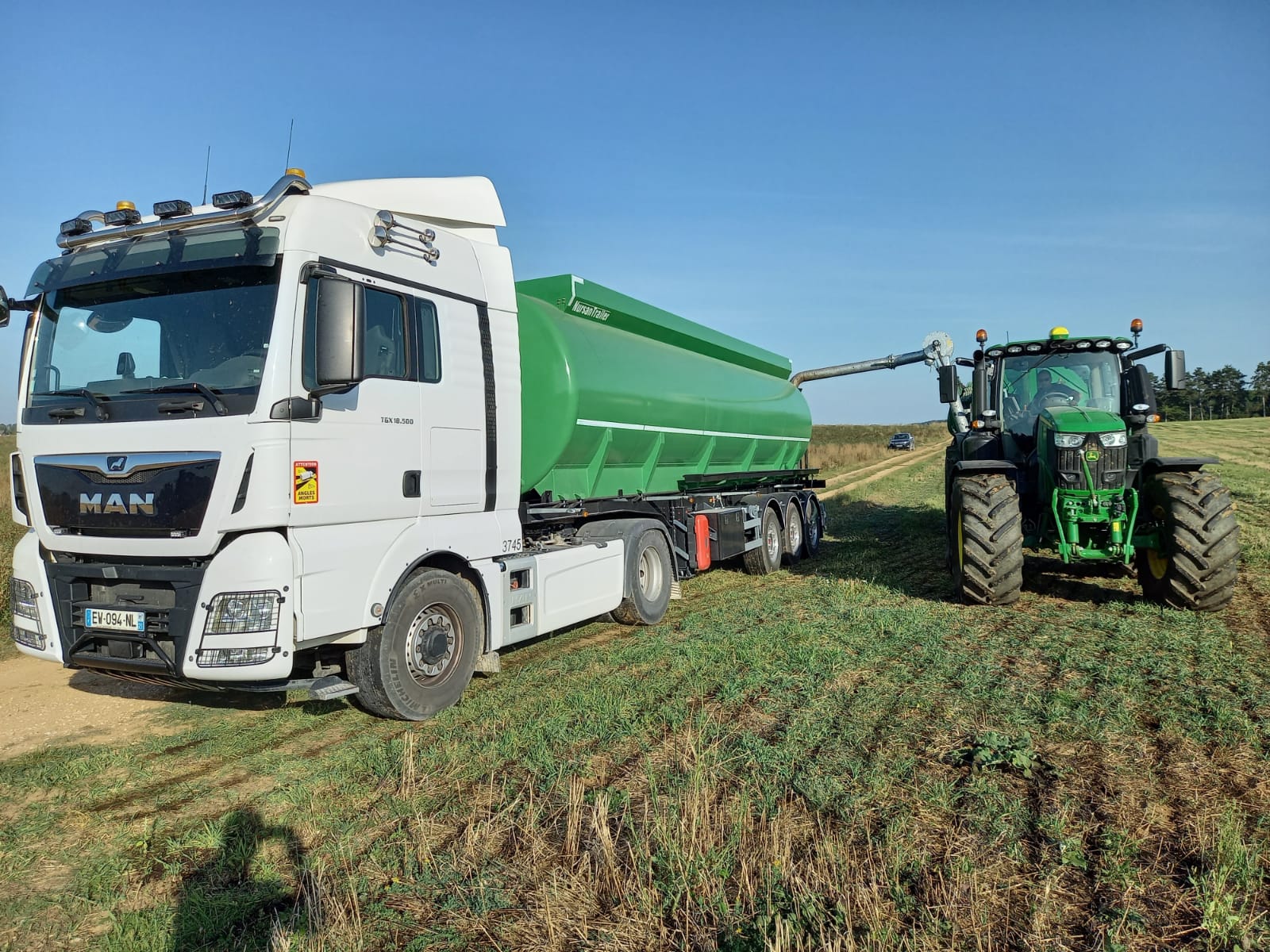

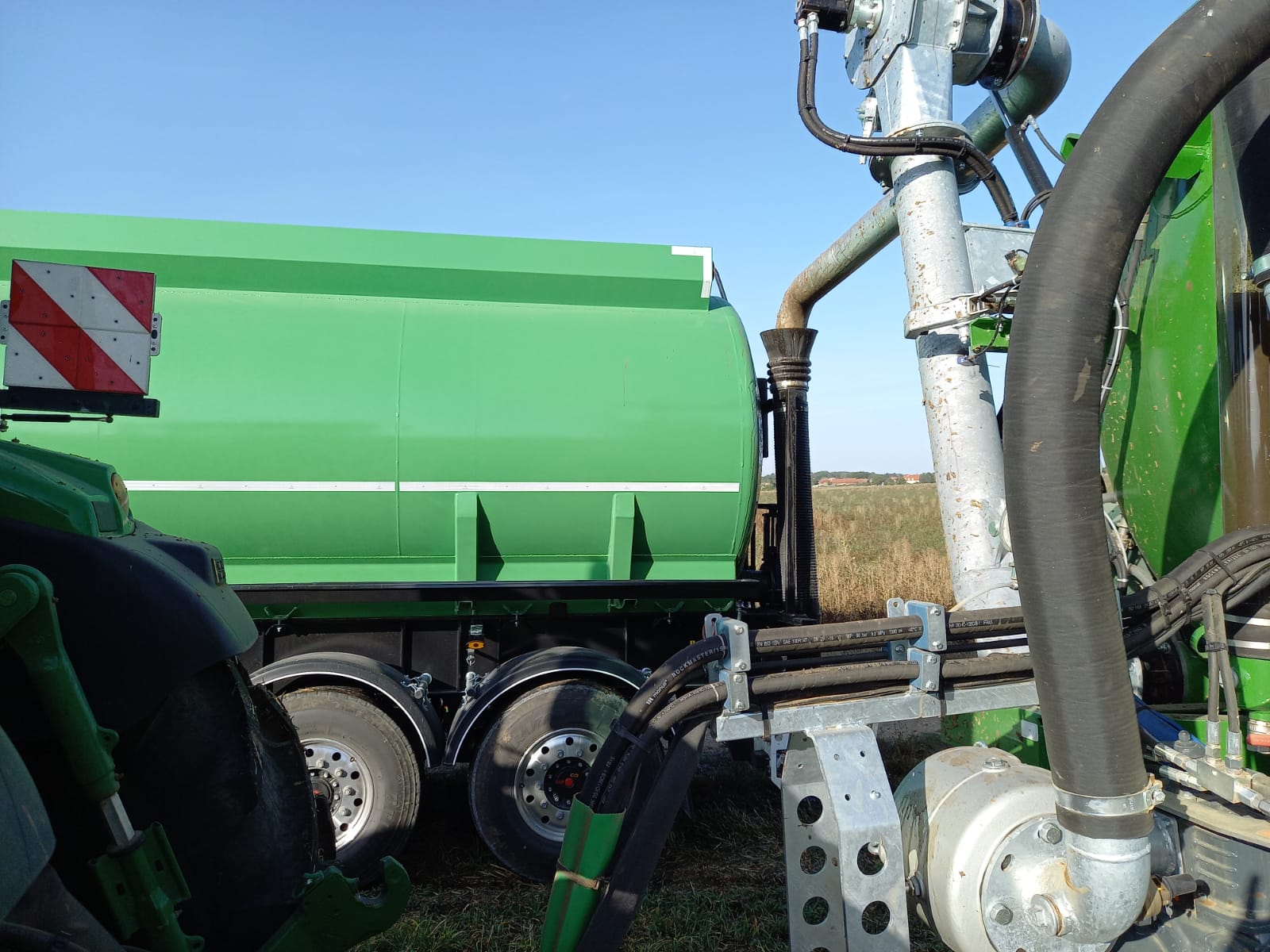

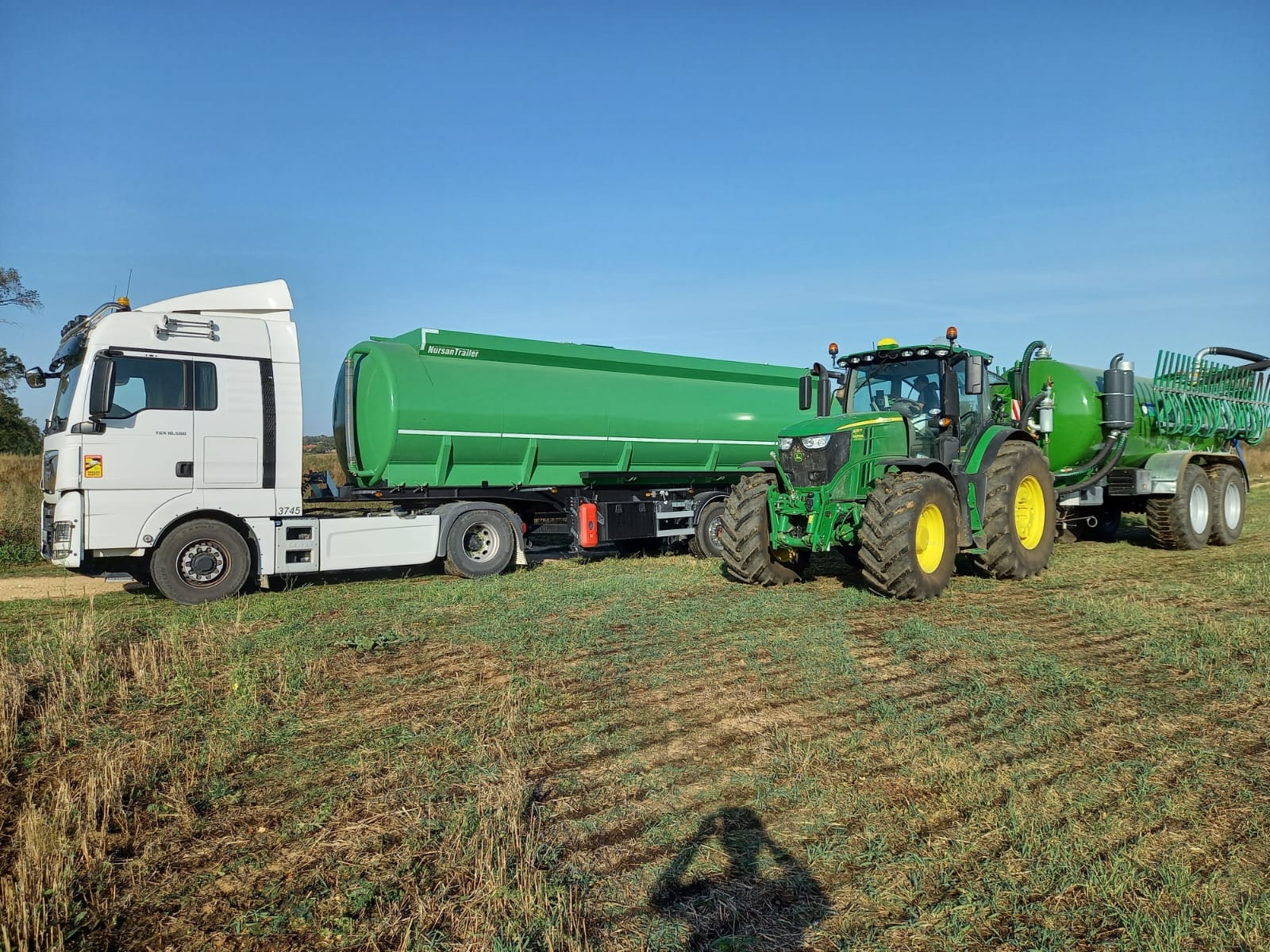

Photo gallery of the range of agricultural tankers for different missions
Nursan launched the production of trailers and semi-trailers in 1996, starting by producing tippers. It then gradually added other product ranges, namely cement tankers, concrete mixers, ADR aluminum tanks, silos, etc. Fully automatic robotic welding technology is currently being used.
Since 2015, Nursan has become a European brand, thanks primarily to the implementation of the ISO 9001 quality system, as well as by increasing production capacity and operation automation systems. Thus, currently Nursan exports to more than 60 countries, including Venezuela, U.A.E., Sudan, Kenya, Ghana, Rwanda, Zambia, Russia, Ukraine, Kuwait, Qatar, Macedonia, Tanzania, Nigeria, Gabon, Trinidad&Tobacco, Azerbaijan, Kazakhstan, S.Arabia, Malta, Ivorycoast, Bosnia, Herzegovina, Romania, France, UK, Belgium, Poland, Slovenia, etc.
